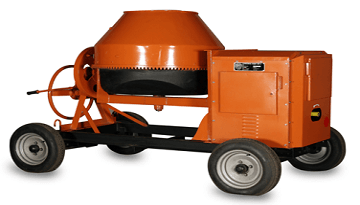

Hand Feed_Concrete Mixer

Hand Feed _Concrete Mixer

handfedmixer
Features :
  • Easy to maintain and operate.
  • Mixing Drum cone is made of 3.15mm (10 SWG) thick steel sheet.Bottom Base of the Drum is Casted. It gives the Drum a very long life compared to Drum's made entirely of MS sheet.
  • High Quality and Standard Bearings are used to transmit power for Drum Rotation to reduce power loss and increase reliability.
  • Branded hydraulic components are used for better reliability. Hydraulic pump directly mounted on prime mover to avoid misalignment and power loss.Available with Electric motor or Diesel engine
  • Optional Dual drives (Electrical and Diesel prime mover is installed on the same chassis. Power can be taken from any source and is easily interchangeable),Optional Calibrated Water Tank and Optional Electronic Weighing System is available.
Technical Specifications :
Technical Data 7/5 Cubic ft 10/7 Cubic ft 14/10 Cubic ft
Capacity ( Unmixed ) 200 Liters 300 Liters 400 Liters
Capacity ( Mixed ) 150 Liters 200 Liters 300 Liters
Power (Diesel Engine) 6 HP 6 HP 6.5 HP
Power (Electrical Motor) 5 HP 5 HP 5 HP
Output 3.5 Cubic m/hr 4.5 Cubic m/hr 5.5 Cubic m/hr
