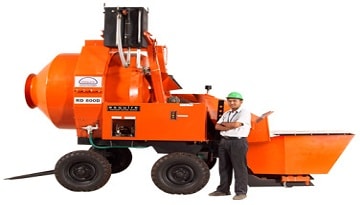

RD Mixer_Concrete Mixer
RD Mixer_Concrete Mixer
Features :
- Hydraulic Hopper
- 4 Pneumatic wheel with jacks
- Calibrated Water Tank (120 Liters) with over flow arrangement
- Water Pump
- Electronic weighting system - 3 bin.
- 16 BHP 2 cylinder Diesel Engine.
- Self-Start with Dynamo. 12 Volt Battery Back Up
- Monitor on stand for weighing system (Eliminates damage due to vibration).
- Power take-off (PTO) is available from the Prime Mover.
Advantages of Esquire Design
- The power required for Drum rotation is supplied with Hydraulic motor for smooth start & stop
- Machine Design eliminates the need of sprocket & chain in the system for transmitting power of prime mover.
- This eliminates the most wear and tear prone parts like Chains and Sprockets hence reducing maintenance cost and down time.
- Minimum rotating parts hence does not require separate lubrication system.
- Continuous Helix type mixing & discharge blades for getting best quality mix & rapid discharge.
- Machine can be easily converted from Electrical to Diesel and vise-a-versa Only Prime mover is to be changed all other parts remain the same.
- Easy to Transport in any available LCV having 7 feet width to save transportation cost and easy mobility at site.
- Power Take-Off (PTO) is available from the Prime Mover.
Technical Specifications :
| Technical Data | RD 600 | RD 800 |
|---|---|---|
| Mix Output | 0.4 Cubic Meter | 0.6 Cubic Meter |
| Production Rate | 8-10 Cubic m/hr | 12-15 Cubic m/hr |
| Drive Power | 2 X 12.5 HP | 2 X 15 HP |
| Speed | 0-33 m/min | 0-33 m/min |
| Drive Power (Electrical Motor) | 12.5 HP | 15 HP |
| Drive Power (Diesel Engine) | 12 HP | 16 HP |
| Weighting System | Electronics | Electronics |
| Drum RPM | 13 | 13 |
| No of Bins | 1,2,3 or 4 | 1,2,3 or 4 |
