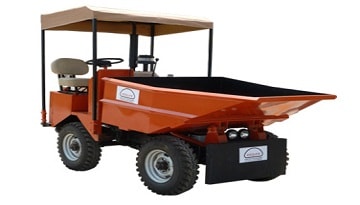

Site Truck_Material Handling
Site Truck_Material Handling
Features :
- Sturdy and Compact Design and Built.
- Hydraulic Power Transmission substantially reduces downtime due to Mechanical failures.
- All time 4 x 4 Drive.
- Small Turning Radius makes it easy to maneuver in congested areas on site.
- Easy to operate and maintain as it is a clutch less drive system which reduces operator fatigue and increases productivity.
- Low height of the Machine makes it easy to Load (Direct output of RD mixer) and the narrow opening of bucket makes it very easy to unloaded directly on the desired spot.
Technical Specifications :
| Model | ST-2 |
|---|---|
| Capacity | 2300 kg / 900 Liters |
| Bucket Tipping | Hydraulic with 2 Cylinders |
| Engine | Rated Power - 24 HP 2-Cylinder Water Cooled Electric Start Battery - 12 Volts |
| Drive | 4 x 4 |
| Transmission | 4 forward 4 reverse |
| Ground Clearance | N/A |
| Discharge Height | N/A |
| Turning radiance | N/A |
| Dimension | N/A |
Key Differences Between New-Hydraulic and Old-Mechanical Drive :
| Esquire | Others |
|---|---|
| Hydraulic Drive | Conventional - Mechanical Drive |
| Clutch less system | Have to Operate Clutch once every 5 seconds |
| Oil Absorbs Shock Load | Clutch & whole transmission subjected to sudden loads & hence High wear & Tear of Gear Box,Axles etc. |
| Small and Compact | Big Size due to Old Transmission technology |
| Small Turning Radius, hence can work in small spaces also | Big Turning Radius due to Larger Size |
